1.0 Introduction

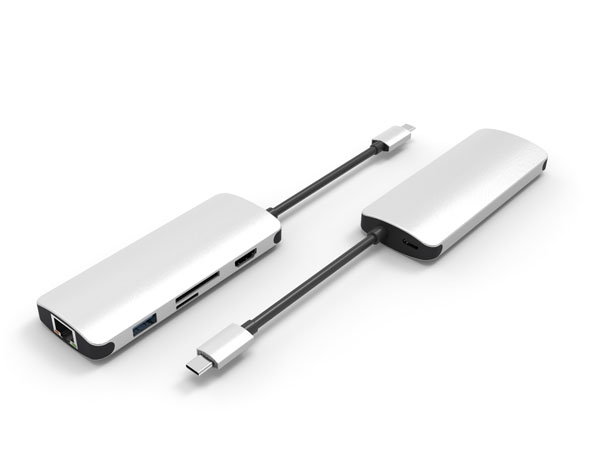

This is a USB-C to USB 3.0 hub and Mciro SD and SD/MMC and HDMI and Gigabit port. The USB 3.0 port allows you to connect
USB device or another hub to the host USB-C computer, the Micro SD and SD/MMC port allows you to access the external memory of the host PC.
It can work on Macbook or Google new Chromebook Pixel and
other USB-C supported devices.
Note: the Micro SD and SD/MMC port can’t work simultaneously, you can choose to use one of them according to your practical
need ( it just depends on the type of your memory card)
2.0 Features
l Support USB-C input, USB 3.0 output
l Support USB 3.0 super speed (5Gbps) transmission, downward compatible with USB 2.0
l USB 3.0 port supports to charge and transmit data for the USB device simultaneously
l USB-C female charging port supports to charge for Macbook or Google new Chromebook Pixel and other USB-C supported devices
l Support to access external memory for the host computer
l Multiple USB-C interfaces support plug and play, hot swap
l Easy to use and carry
3.0 SPECIFICATIONS
|
Input/Output Connector |
|
|
Input |
USB-C Male x1 Micro SDX1 HDMI Malex1 SD/MMCX1 |
|
Output |
USB 3.0 Femalex2 |
|
Warranty |
|
|
Limited Warranty |
1 Year |
|
Environmental |
|
|
Operating Temperature |
0 ℃ to +45℃ |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
-10℃ to +70℃ |
|
Storage Humidity |
5% to 90 % RH (no condensation) |
|
Regulatory Approvals |
|
|
Certifications |
FCC,CE |
|
Power Supply |
|
|
USB-C Female Port |
Up to 60W |
|
Accessories |
|
|
User Manual |
English Version |
