Product Code: HD-4KSW301M-1

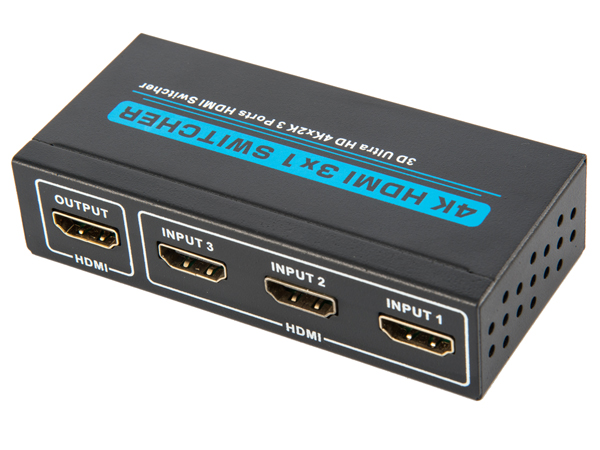

HDMI1.4 3x1 Switcher Ultra HD 4Kx2K 3D

. Switching is done via itself automatically when signal present on the ports.

Support HDCP protocol and applicable to source device and high definition

  display device such as DVD and HDTV which have HDMI ports or digital ports,

   and are compliant with HDCP protocol.

. Support high resolutions: 480i/p,576p,720i/p,1080i/p,3840x2160@25/30Hz

. Support HDMI1.4

.  Extend the transmission distance and improve transmission signal.

. Compatible with DVI by using HDMI TO DVI adapter.

. Plug-and-play.

.Convenient to connect multi-group input signals to display on one HDTV.

. Save space. Allow several sources to use one high definition display device simultaneously.

. Metal casing design and overall shielding without signal interference.

. Select input port by hand freely.

. LED indicates signal and power mode.

. Power supply(Please refer to technical parameter)

PARAMETERS
TECHNIC DATA


Product

3X1 HDMI SWITCH

HDMI SourceInputPort

3

Display DeviceOutputPort

1

SourcePortConnector

19 PIN HDMI(A TYPE)

Display DevicePort Connector

19 PIN HDMI(A TYPE)

HDCP Compliant

YES

Source Device Selection

Push Button IR Remote Control

Input Video Signal

0.5-1.0 Volts P-P

Input DDC signal

5 Volts P-P(TTL)

Deep Color

48bit

Single LinkRange

3840x2160

HDMI Version

HDMI1.4

Bandwidth

Up to 340Mhz

Signal Speed

Up to 10.2Gbps

The length of input cable

PS310MBLUE DVD10M

The length of output cable

10M

The cable standard

28AWG HDMI1.4

Vertical FrequencyRange

25/30Hz

Power Consumption(max)

2.5 Watts

Operation Temperature

0 TO 70

Working Voltage

DC 5V

Power Adaptor

5V 1A or 2A
